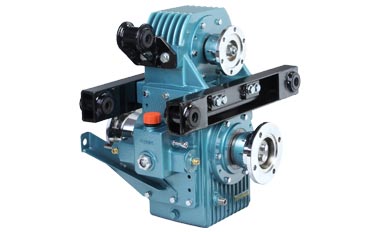

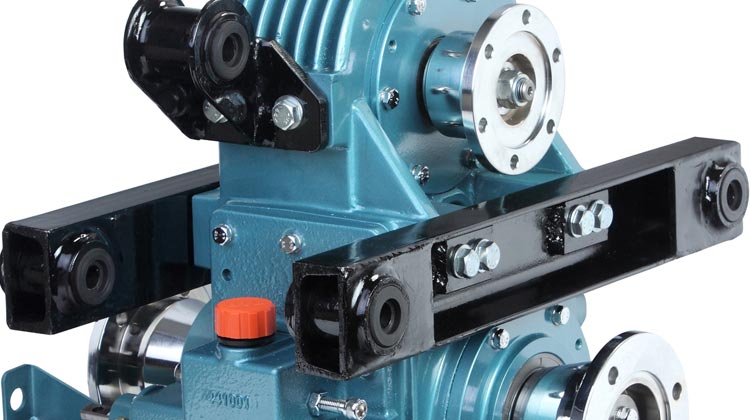

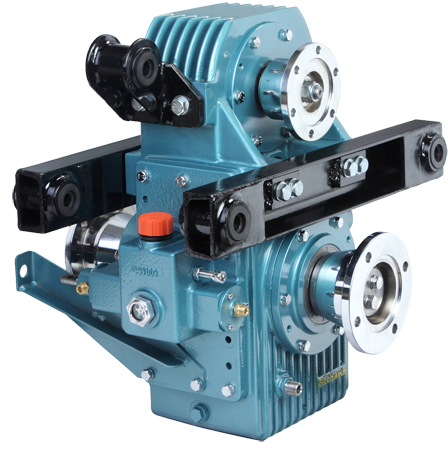

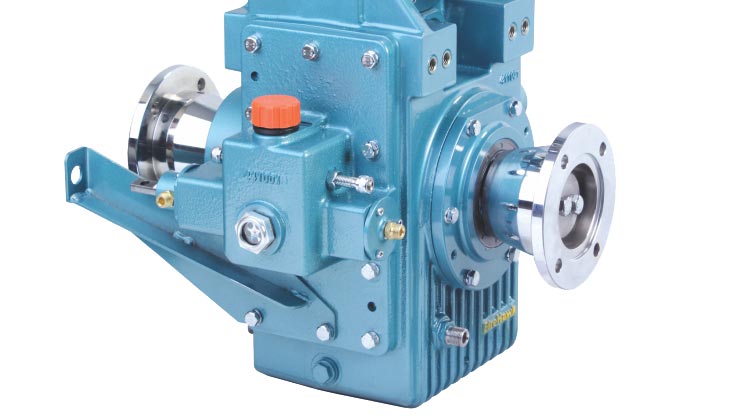

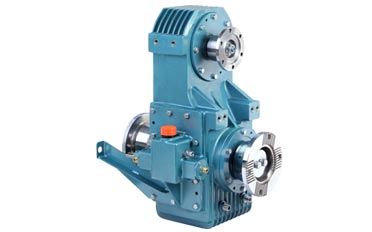

TECHNICAL DATA SHEET FOR LM PTO
Specifications :1.Gear case:- Made of high strength aluminum alloy making the PTO lighter (70 kgs approx) yet durable, which makes mounting/maintenance job much easier2.
Gears: Helical gears; made from special alloy steel, carburized, are hardened and ground.3. Bearings: Oil lubricated oversized bearings make the P.T.O. stronger, silent in operation & operates at low temperature.4. Ratios: Available in four different ratios (1:1.33 & 1:1.48). Other ratios available on request.5. Torque: Designed to transfer a) Road shaft torque of 6,600 Nm and b) Pump shaft torque of 700 to 1000 Nm.6. Cooling mechanism: Inbuilt water cooling system is provided for continuous operations. Sufficient fins are provided on PTO body for cooling while operating on road.7. Oil Seals: High quality double lip oil seals provided with dust guards offer virtually leak proof operations for extended periods, no frequent oil level check up is necessary.8. Gear Shifting mechanism: a) Automatic pneumatic self locking gear shift as standard.
(Air power allows the operator to shift from road or pump position by actuating a single button. Illuminated signal indicates completion of shift from road to pump.)
b) Manual gear shift mechanism available as option is supplied with flexible control lever assembly.
This makes fitment of control lever very flexible and easy in the driver's cab, especially with vehicles having tilting cabs.9.

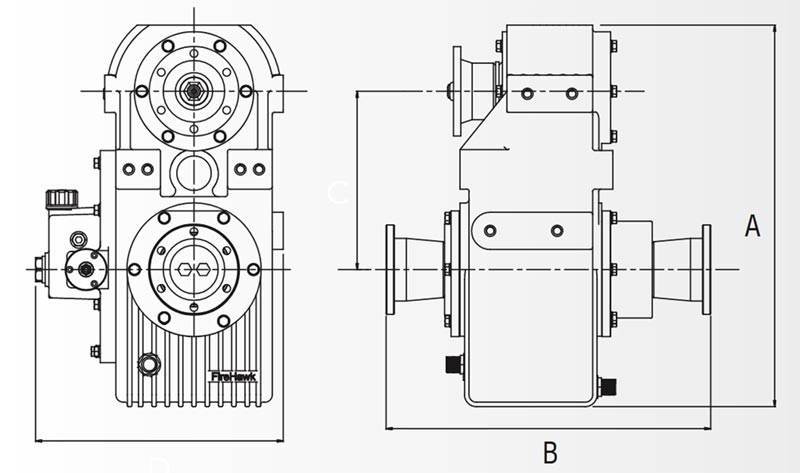

Front and rear bearing/bearing caps can be easily removed without removing the gear box from the vehicle; so reduced break down time10. Flanges to suit any requirements are available.11. Sufficient mounting pads are provided to suit mounting on any chassis.* The right of technical modifications & improvement without prior notice is reserved.Overall Dimensions of LM PTOMODEL NUMBERRATIOCENTRE DISTANCE (A)LM 331:1.33243.71 mmLM 481:1.48239.39 mm
Downloads For Power Take Off ( LM Series )
