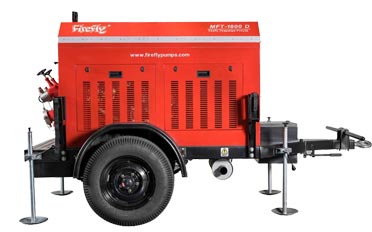

TECHNICAL DATA SHEET FOR MFT - 1800 - D
Performance Data :1. ENGINE: The pump is driven by a close coupled suitable diesel engine.
The engine is supplied complete with:AlternatorRadiatorStarter motor12v batteryOil filterFuel filterOil coolerCooling fanExhaust silencerAir cleanerHeat ExchangerFuel tank capacity for more than 3 hours running as standard.2. PUMP :Rated Performance: -Discharge
*The Performance data stated above is observed at test conditions (3.0 meters suction lift at NTP conditions) *For capacities other than stated above, please contact technical department.•Suction Inlet : - 100 mm• Priming: - Priming is provided by exhaust ejector priming.• Discharge Couplings: - 2 x 2.5” instantaneous screw down delivery outlets.• The shaft is supported by two sealed ball bearings. Shaft sealing is by the well known Firefly automatic mechanical seal incorporating a carbon seal running on a stainless steel counter face. The mechanical seal is pre-loaded and requires no maintenance or attention during its life.Material Specifications: -Part NameMaterialPump ShaftStainless SteelImpellerGunmetal / Stainless SteelVolute CasingGunmetal / Stainless SteelRenewable Wear RingsGunmetal / Stainless Steel3. PRIMER : -
As standard, pump is equipped with Exhaust primer capable of priming from 7 meters suction height within 7 seconds. However 'PRIMATIC' piston primer
(Capable of priming from 9 meter suction height) is also available as an option to exhaust.4. INSTRUMENTS: -
A comprehensive illuminated weatherproof control and instrument panel is fitted in a convenient position close to the pump and includes the following: Pump pressure gauge Pump suction compound gauge Panel light Engine water temperature gauge Engine oil pressure gauge Battery condition meter Fuel contents gauge Tachometer (Optional) Panel light switch Throttle control Stop control Starter button Engine and pump operating instruction plate5. TRAILER CHASSIS -
The pump and engine combination is supported on anti-vibration mounts to cut down the noise and vibration. The complete unit is mounted on a heavy duty trailer for easy surface transport. Equipment can easily be maneuvered by two persons by help of two foldable handles. Equipment can be easily towed by any vehicle for surface transport. A tool box is provided for essential operational & maintenance tools. Suction hoses can be carried along with the trailer.* The right of technical modifications & improvement without prior notice is reserved.
*The Performance data stated above is observed at test conditions (3.0 meters suction lift at NTP conditions).
*For capacities other than stated above, please contact technical department.
