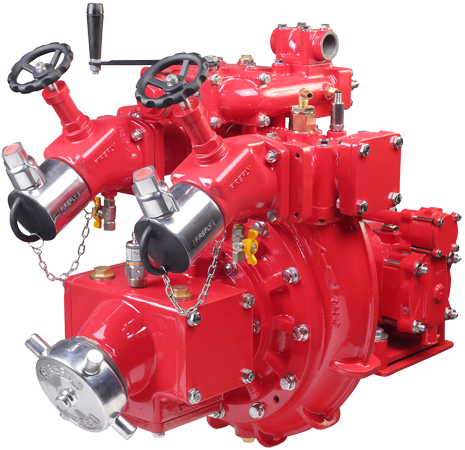

Multi Pressure Vehicle Mounting, Truck Mounted Fire Pumps

We are Manufacturer, Supplier, Exporter of Multi Pressure Vehicle Mounting (Mounted) Fire Fighting Pumps, High Low Pressure Truck Fire Pumps and our setup is situated at Kolhapur, Maharashtra, India.

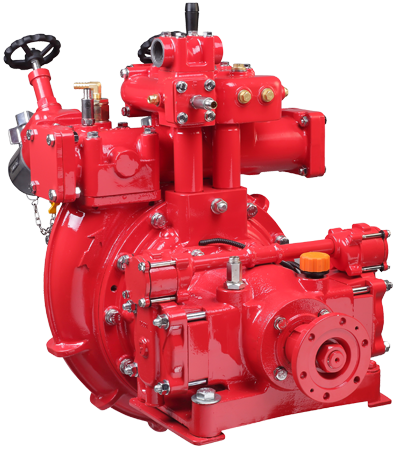

Key Features

Both High Pressure & Low Pressure can be operated simultaneously or individually
Single Lever Actuation from Low Pressure to High Pressure
Available in Three Materials - Aluminum, Gunmetal, Stainless Steel
Modular Suction & Delivery Manifold Design makes easy to Install
Equipped with Fast, Reliable & Fully Automatic Priming System - 'E-Primatic'
Inbuilt Thermal Relief Valve & Pressure Relief Valve for Safety
Specially designed maintenance free mechanical seal
CW & CCW both Rotations available

Primers

Foam Systems

Gear Box Attachments

Mounting Platforms

Suction Manifolds

Pump Control Panels

Tank Level Indicators

A whole new 'E-Primatic' priming system is now a standard feature on all 'Firefly' series pumps. It is a horizontal twin piston reciprocating type primer
The system has several add on features like -
Fully Automatic - Requires No attention of Operator
Highly reliable - Primer is actuated by Electromagnetic Clutch & Cut off by Pressure Sensing device on discharge manifold at 0.8 BAR
Very Rapid - From 7 meters within 24 Seconds with 100 mm suction hose & within 36 seconds with 140 mm suction hose at NTP conditions.
Recommended Priming Speed - 2500 RPM
The entire priming system is made in corrosion free stainless steel material
Very low wear & tear enhances the life expectancy of pump & reduced maintenance cost
Option of Manual and Auto priming is available

The Automatic proportional round the pump foam system
Automatically adjusts the percentage as flow varies with help of mechanical water cone
3 Induction rate to choose from - 1%, 3% & 6%
Suitable with Protein fluorocarbon & Aqueous film forming compounds
Simple, cost effective System
Maintenance Free - No moving parts in system. Completely mechanical system
No additional drive energy required
Compatible with all Firefly Pump Models from 1000 lpm to 6000 lpm.
Available in three materials - Aluminum Alloy, Gunmetal & Stainless Steel

All Firefly Truck Fire Pumps can be supplied with Full Torque Attached Step up Gear Box.
Available Gear Ratio - 1:1.01, 1:1.24, 1:1.4, 1:1.57, 1:1.8, 1:2.16
Helical Gears for Silent Operation
Gear made from special Alloy Steel, Case Hardened & Profile Ground for best wear resistance & long life
Gear box can be fitted in 3 positions - Left, Right & Down Position
Inbuilt water cooling system provided for prolonged operation without overheating
Oil lubricated taper roller bearings absorbs all axial & radial thrust

Firefly can offer OEM fitted pump mounting platforms for proper mounting of Fire Pumps on Fire Pumps on fire tenders

Isolates Fire Pumps from all chassis vibration
Smooth running of Fire Pumps increases the life of all rotating components of the pump
Pump 'water drain' & 'oil drain' points are made readily accessible
These mounting platforms can be adopted almost on all chassis models

All Firefly pumps can be equipped with Modular suction manifolds.
We have variety of suction manifolds for different type of models.
Suction Manifolds available in different material to suit your requirement - Aluminum Alloy, Gunmetal, Stainless Steel.
Each manifold has sufficiently sized Flanged or threaded connection to intake from tank.
As standard all manifolds comes with British Standard Round threads with Stainless Steel cap but other type couplings can also be supplied.
Custom made fabricated suction manifolds as per drawing can also be supplied.

All pump pressures like discharge pressure, vacuum etc. are digitally displayed.
Digital pump RPM meter.
Digital pump running hour meter, allows you to carry out scheduled maintenance work of pump & PTO at right intervals.
Pump oil temperature indicator with high temperature audio & video alarm.
Illuminated keys for Auto & Manual priming mode selection.
Auto prevention for use of primer above 2500 RPM.
Emergency bell key on panel.
Auxiliary display unit can be fitted in driver's cabin if required.

Compact LED Illuminated Water / Foam Tank Level Indicators
Audio / Video signal is given once water/foam tank level is below 25% of total volume which help to avoid dry running of the Fire Pumps.
Auxiliary display unit can be fitted in driver's cabin if required.

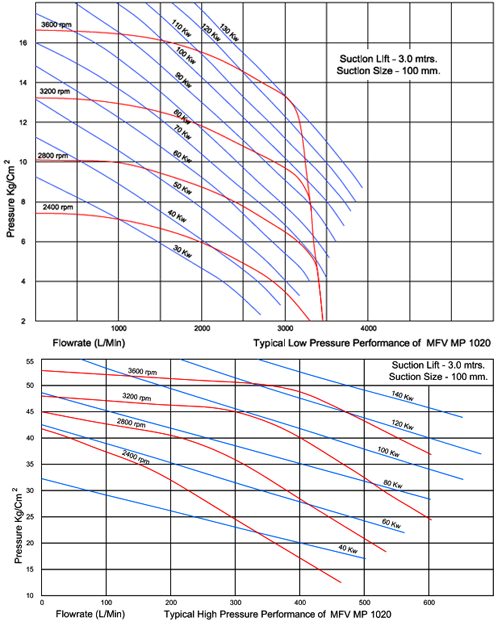

Rated Performance - Low Pressure	2000 LPM at 10 BAR
Other Duty Points – (Low Pressure)	1000 LPM at 10 BAR
	1000 LPM at 15 BAR
	1500 LPM at 10 BAR
	1800 LPM at 7 BAR
	1800 LPM at 10 BAR
	2000 LPM at 7 BAR
	2270 LPM at 7 BAR
	2270 LPM at 8.8 BAR
Rated Performance - High Pressure	400 LPM at 40 BAR
Other Duty Points - (High Pressure)	250 LPM at 40 BAR
	300 LPM at 35 BAR
	300 LPM at 40 BAR
Maximum Outlet Low Pressure	17.5 BAR
Maximum Outlet High Pressure	54.5 BAR
