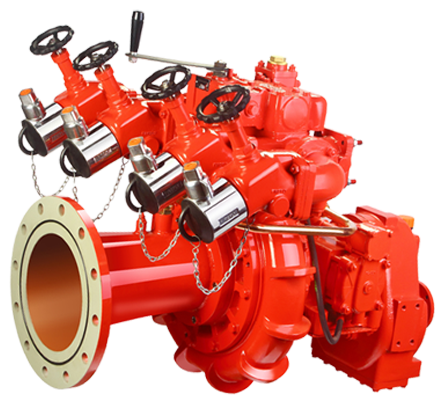

Endura Series Multi Pressure Vehicle Mounting Fire Pumps
-
Primer
- E-Primatic
- Primatic
- WRP
All 'Endura' series fire pumps are fitted with advanced 'E-Primatic' priming system Highly reliable twin piston horizontal reciprocating priming system which is automatic but at the same time gives the pump operator a choice to engage it only when needed.An in built electro-magnetic clutch gives drive to piston primer & actuation of primer is controlled by a pressure switch, not directly by water pressure. Primers can be operated in Auto Mode OR Manual Mode
• Auto Mode - Whenever pump pressure is below 0.8 bar primer is engaged automatically & when pump pressure is above 0.8 bar primer is dis-engaged automatically.
• Manual Mode - Engage the primer manually but once pump registers 0.8 bar pressure, primer is dis-engaged automatically. Once disengaged, Primer will not engage automatically even if pump pressure is below 0.8 bar. So pump can be operated at very low pressures without primers being engaged. This mode particularly developed for de-watering application where pump runs at very low pressure for pro-longed time.Easy to operate. Entire Priming system is made of stainless steel which makes it highly reliable. Variety of completely illuminated pump control panels are available. Capable of priming the pump from 9 meters at NTP conditions. Complies all EN 1028 requirements.
All series of vehicle fire pumps can be supplied with Primatic priming system. Completely automatic, highly reliable twin piston reciprocating priming system. An eccentric cam gives drive to piston & disengagement of primers is directly controlled by water pressure. Primer disengages automatically when pump registers 2 bar pressure. Complete priming system is made of stainless steel. Capable of priming the pump from 9 meters at NTP conditions. Complies all EN 1028 requirements.
All series of vehicle fire pumps can be supplied with Water Ring Priming system. Completely automatic in operation. Available in three material options - Aluminium, Gunmetal (Bronze) Capable of priming the pump from 7 meters.
-
Specification Sheet
TECHNICAL DATA SHEET FOR MFV- MP -1060

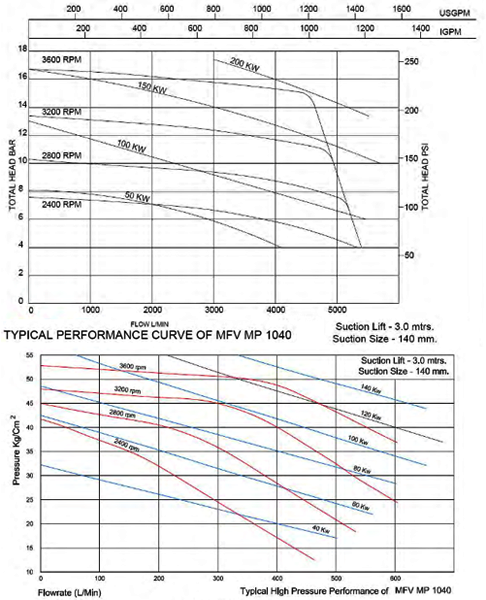

Performance Data : Rated Performances in Low Pressure Stage:-Discharge
(lpm)Pressure
(bar)PowerRPMkilowattsHorsepower6000101702303300Rated Performances in High Pressure Stage:-Discharge
(lpm)Pressure
(bar)PowerRPMkilowattsHorsepower40040951273200Suction Inlet:- 200 mm / 8 inchesPriming Performance Range:- 0 to 8.0 metersRecommended Priming Speed:- 2000 rpm to 2200 rpmThermal Relief Valve Activation:- 50,oC to 60oCTypical Dimensions :-LengthWidthHeight750 mm790 mm685 mm28.3 inches31.1 inches27 inches*The Performance data stated above is observed at test conditions
(3.0 meters suction lift at NTP conditions).*For capacities other than stated above, please contact technical department.* The right of technical modifications & improvement without prior notice is reserved. -
Download
Categories
Majorly we serve our products to customers from Bahrain, Iran, Iraq, Kuwait, Oman, Qatar, Saudi Arabia, UAE, Italy, Spain, Ukraine, Poland, Czech Republic, Belarus, Croatia, Slovakia, Cyprus, Estonia, France, Greece, Serbia, Slovenia, Algeria, Libya, Tunisia, Nigeria, Zambia, South Africa, Indonesia, Philippines, Lebanon and Singapore
We are Manufacturer, Supplier, Exporter of Multi Pressure Vehicle Mounting Fire Pumps, Vehicle Mounted Normal Pressure Fire Pumps and our setup is situated at Kolhapur, Maharashtra, India
Key Features
• High Pressure performance up to 400 lit/min at 40 bar pressure.
• Available in Aluminium / Gun Metal/ Stainless Steel material of construction.
• Step up gear box attachment to pump option also available with variety of gear ratios.
• Fitted with fully automatic Pressure Relief Valve & Thermal Relief Valve for safety of equipment as well as operator.
• CE marked in total complince with EN 1028
• UL Approved in total complince with NFPA 1901
