MFV-LP-10000

Normal Pressure Vehicle Mounting Fire Fighting Pumps

  • Rate Duty Point - 10000 LPM at 10 Bar & 8000 LPM at 15 bar

  • Confirms NFPA 1901

  • CE Certified

Connect with us

Normal Pressure Vehicle Mounting Fire Pumps Home > Our Products >
Normal Pressure Vehicle Mounting Fire Pumps >
( MFV-LP-10000 )

  • Normal Pressure Vehicle Mounting Fire Pumps ( MFV-LP-10000 )
  • Normal Pressure Vehicle Mounting Fire Pumps ( MFV-LP-10000 )

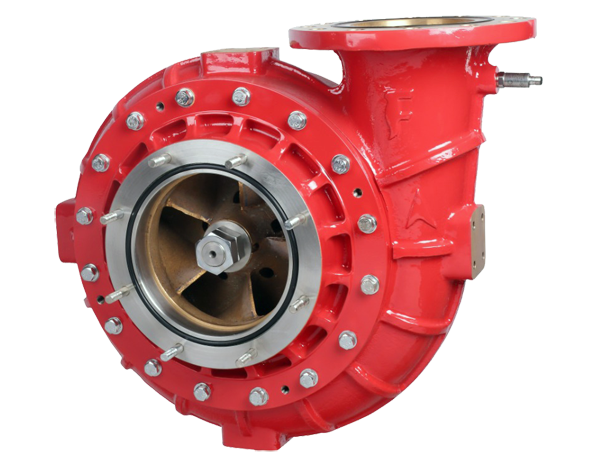

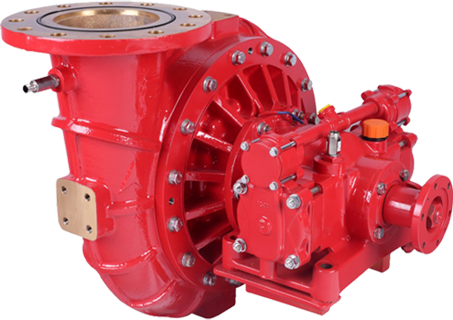

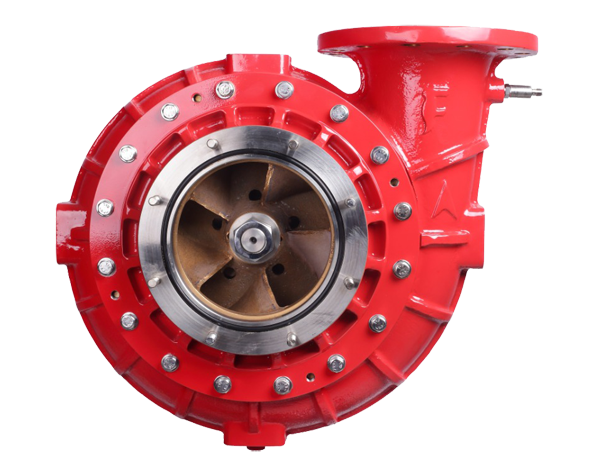

Normal Pressure Vehicle Mounting Fire Pumps

Key Features

  • Single Stage Centrifugal Fire Fighting Pumps

  • Available Gunmetal Material as standard

  • Equipped with Fast, Reliable & Fully Automatic Priming System - 'E-Primatic'

  • Specially designed maintenance free mechanical seal

  • CW & CCW both Rotations available

Equipments

Primer
Gear Box Attachment
Mounting Platform
Pump Control Panel
Tank Level Indicators

e-primatic, Diesel Portable Fire Pumps, Normal Pressure Vehicle Mounting Fire Pumps

E-Primatic Primer

  • A whole new 'E-Primatic' priming system is now a standard feature on all 'FIREFLY' series pumps. It is a horizontal twin piston reciprocating type primer The system has several add on features like -
  • Fully Automatic - Requires No attention of Operator
  • Highly reliable - Primer is actuated by Electromagnetic Clutch & Cut off by Pressure Sensing device on discharge manifold at 0.8 bar
  • Very Rapid - From 7 meters within 24 Seconds with 100 mm suction hose & within 36 seconds with 140 mm suction hose at NTP conditions.
  • Recommended Priming Speed - 2500 RPM
  • The entire priming system is made in corrosion free stainless steel material
  • Very low wear & tear enhances the life expectancy of pump & reduced maintenance cost
  • Option of Manual and Auto priming is available
Step Up Gear box Attachment

Step Up Gear box Attachment

  • All Firefly Truck Fire Pumps can be supplied with Full Torque Attached Step up Gear Box.
  • Available Gear Ratio - 1:1.01, 1:1.24, 1:1.4, 1:1.57, 1:1.8, 1:2.16
  • Helical Gears for Silent Operation
  • Gear made from special Alloy Steel, Case Hardened & Profile Ground for best wear resistance & long life
  • Gear box can be fitted in 3 positions - Left, Right & Down Position
  • Inbuilt water cooling system provided for prolonged operation without overheating
  • Oil lubricated taper roller bearings absorbs all axial & radial thrust
Mounting Platform, Diesel Portable Fire Pumps

Mounting Platform

    Firefly can offer OEM fitted pump mounting platforms for proper mounting of Fire Pumps on Fire Pumps on fire tenders

  • Isolates Fire Pumps from all chassis vibration
  • Smooth running of Fire Pumps increases the life of all rotating components of the pump
  • Pump ‘water drain’ & ‘oil drain’ points are made readily accessible
  • These mounting platforms can be adopted almost on all chassis models
Pump Control Panel (Master Control Unit)

Pump Control Panel (Master Control Unit)

  • All pump pressures like discharge pressure, vacuum etc. are digitally displayed.
  • Digital pump RPM meter.
  • Digital pump running hour meter, allows you to carry out scheduled maintenance work of pump & PTO at right intervals.
  • Pump oil temperature indicator with high temperature audio & video alarm.
  • Illuminated keys for Auto & Manual priming mode selection.
  • Auto prevention for use of primer above 2500 RPM.
  • Emergency bell key on panel.
  • Auxiliary display unit can be fitted in driver’s cabin if required.
Tank Level Indicators, Diesel Portable Fire Pumps

Tank Level Indicators

  • Compact LED illuminated water/foam tank level indicators
  • Audio/ Video signal is given once water/foam tank level is below 25% of total volume which help to avoid dry running of the Fire Pumps.
  • Auxiliary display unit can be fitted in driver's cabin if required.

Specification

Rated Duty Point 10000 LPM at 10 bar
  8000 LPM at 15 bar
Maximum Outlet Pressure Upto 20 bar
Normal Pressure Vehicle Mounting Fire Pumps
Portable Fire Pumps

Suction

1 x 200 mm
Fire fire-fighting-pumps.html

Delivery

1 x 150 mm
Fire Pumps

Primer

7 meters within 68 seconds
Fire Pumps

Certification

Confirms to NFPA 1901

Downloads

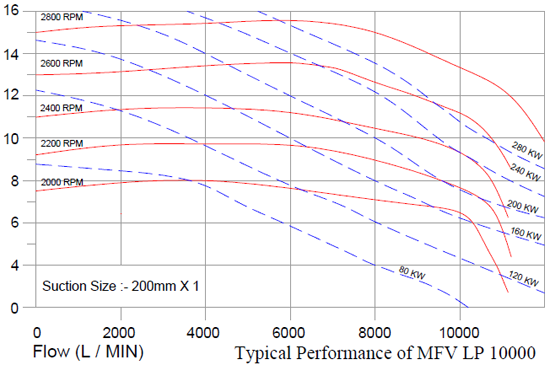

Performance Curves
